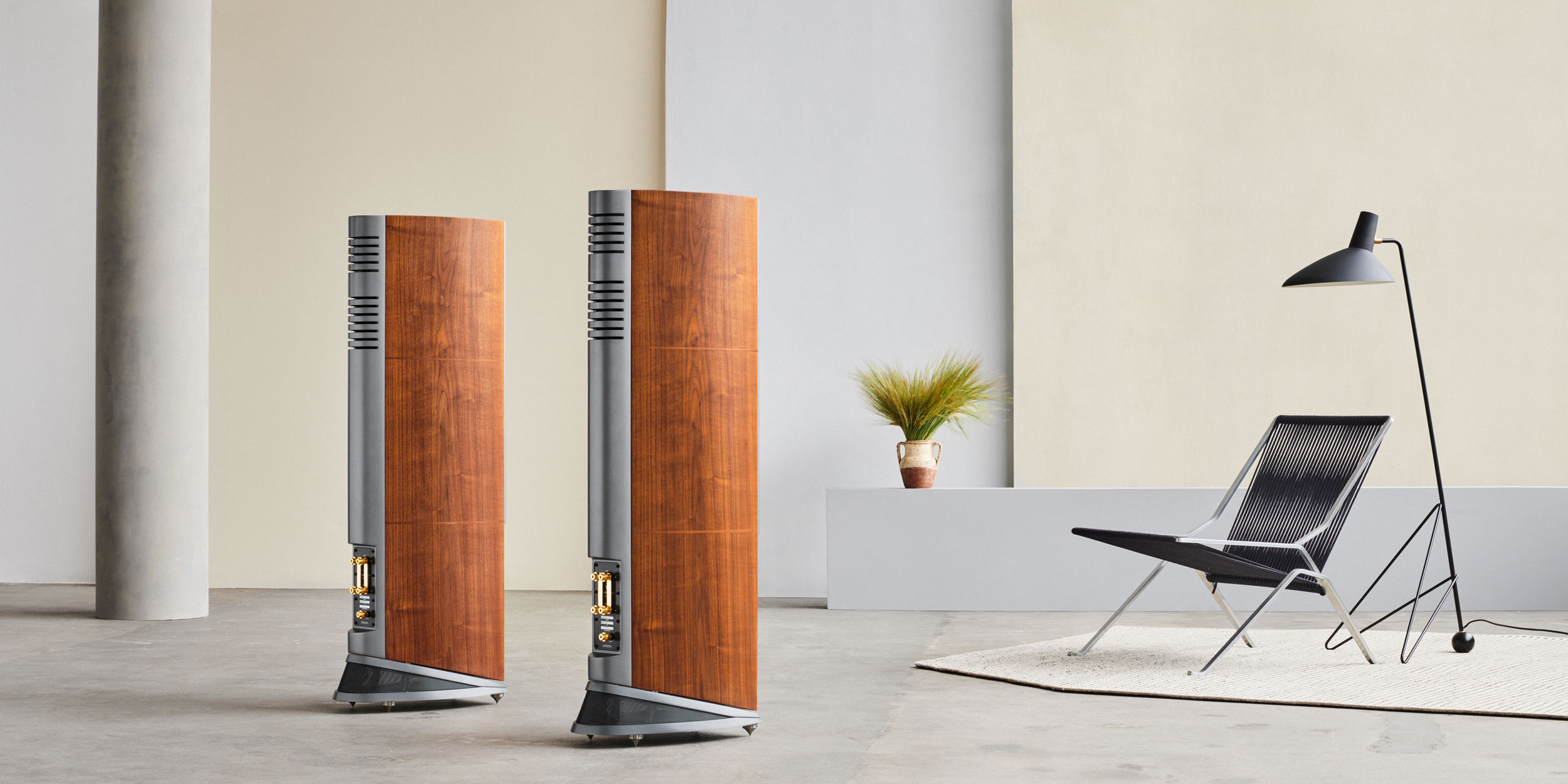

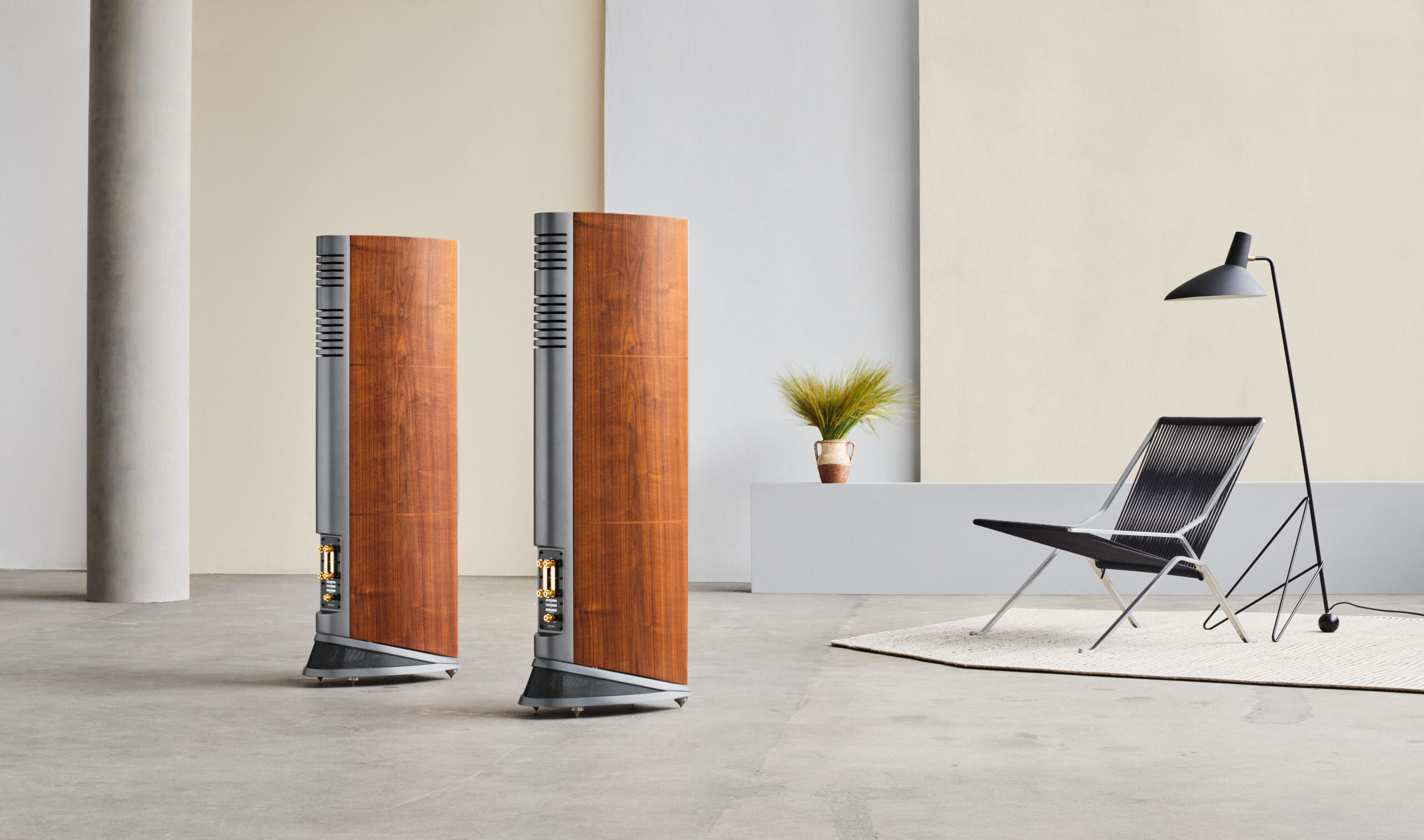

R 6

A POWERFUL AND SOPHISTICATED LOUDSPEAKER FOR THE DEMANDING MUSIC LOVER

The R 6 are dynamic, delicate, emotionally revealing and natural sounding speakers with great attention to detail. A rock solid and easy driven speaker that brings together impressive performance with luxury and refinement.

The R 6 cabinets are assembled with thick non-resonant vacuum pressured shells and are constructed using high density hardwood (HDF) for the best possible strength and low resonance. The teardrop shape in combination with a laminated, dense, strong and heavy rear baffle further reduces unwanted cabinet resonance and avoids standing waves. When assembled, the cabinets are heavily braced internally and carefully damped with strategically positioned Nano Pore damping plates.

Rather than having to buy standard drive units from even the best, most respected manufacturers, we engineer our drivers in-house and ask the finest Danish supplier to build them for us. This way we ensure that we can co-engineer our own drive units with our own crossovers to form a perfect entity. To further improve realism and depth of field, the new R 6 Arreté now uses a rear firing 3” midrange driver with its own dedicated crossover. The theory behind using a rear firing driver is inspired by our reference R 11 Arreté and R 8 Arreté. The construction also adds a perfectly measured level of midrange. Exclusively on R 6 Arreté.

Audiovector Freedom is a new and revolutionary grounding technology, which addresses the movement induced distortion of and between the drive units in a loudspeaker. The currents running between the chassis are being processed and dealt with through a new separate crossover, which routes the signal to the ground terminal of your wall socket or your grounded mains distribution unit. Contrary to conventional knowledge, these currencies cause coloration and distortion between the drive units. By balancing and filtering these through a dedicated separate filter and by offering the possibility of connecting the speakers to earth/ground, we achieve a clean, very accurate, significantly more realistic sound with a low noise floor.

R 6

A POWERFUL AND SOPHISTICATED LOUDSPEAKER FOR THE DEMANDING MUSIC LOVER

The R 6 are dynamic, delicate, emotionally revealing and natural sounding speakers with great attention to detail. A rock solid and easy driven speaker that brings together impressive performance with luxury and refinement.

The R 6 cabinets are assembled with thick non-resonant vacuum pressured shells and are constructed using high density hardwood (HDF) for the best possible strength and low resonance. The teardrop shape in combination with a laminated, dense, strong and heavy rear baffle further reduces unwanted cabinet resonance and avoids standing waves. When assembled, the cabinets are heavily braced internally and carefully damped with strategically positioned Nano Pore damping plates.

Rather than having to buy standard drive units from even the best, most respected manufacturers, we engineer our drivers in-house and ask the finest Danish supplier to build them for us. This way we ensure that we can co-engineer our own drive units with our own crossovers to form a perfect entity. To further improve realism and depth of field, the new R 6 Arreté now uses a rear firing 3” midrange driver with its own dedicated crossover. The theory behind using a rear firing driver is inspired by our reference R 11 Arreté and R 8 Arreté. The construction also adds a perfectly measured level of midrange. Exclusively on R 6 Arreté.

Audiovector Freedom is a new and revolutionary grounding technology, which addresses the movement induced distortion of and between the drive units in a loudspeaker. The currents running between the chassis are being processed and dealt with through a new separate crossover, which routes the signal to the ground terminal of your wall socket or your grounded mains distribution unit. Contrary to conventional knowledge, these currencies cause coloration and distortion between the drive units. By balancing and filtering these through a dedicated separate filter and by offering the possibility of connecting the speakers to earth/ground, we achieve a clean, very accurate, significantly more realistic sound with a low noise floor.

Colours and Veneers

At Audiovector we use only carefully selected real wood veneers. We offer a wide variety of custom paint finishes which are painted in Denmark. Availability on request.

Standard finishes: African Rosewood Piano, Black Piano, Italian Walnut Matte, White Piano.

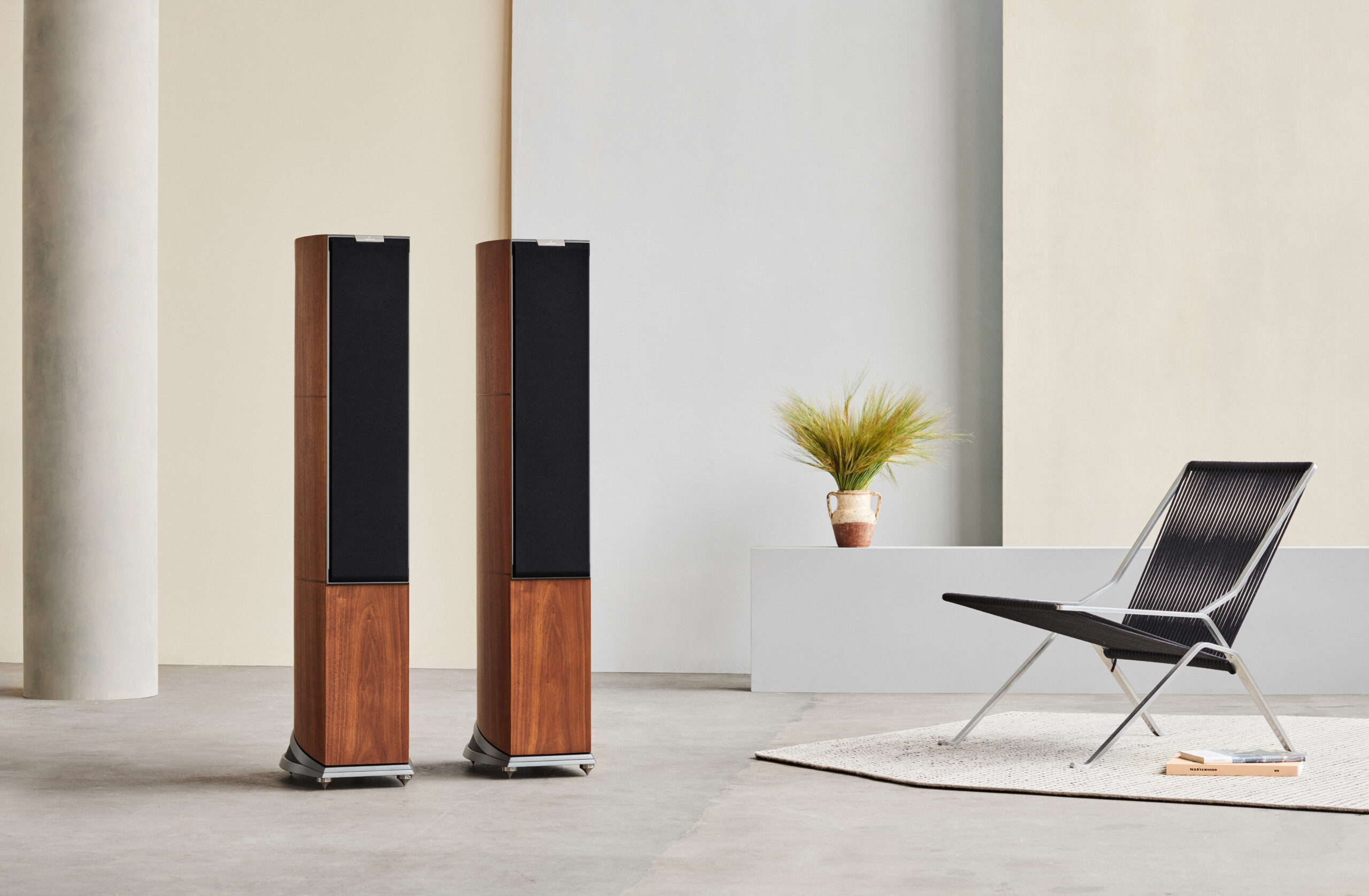

BLACK CLOTH GRILLE INCLUDED

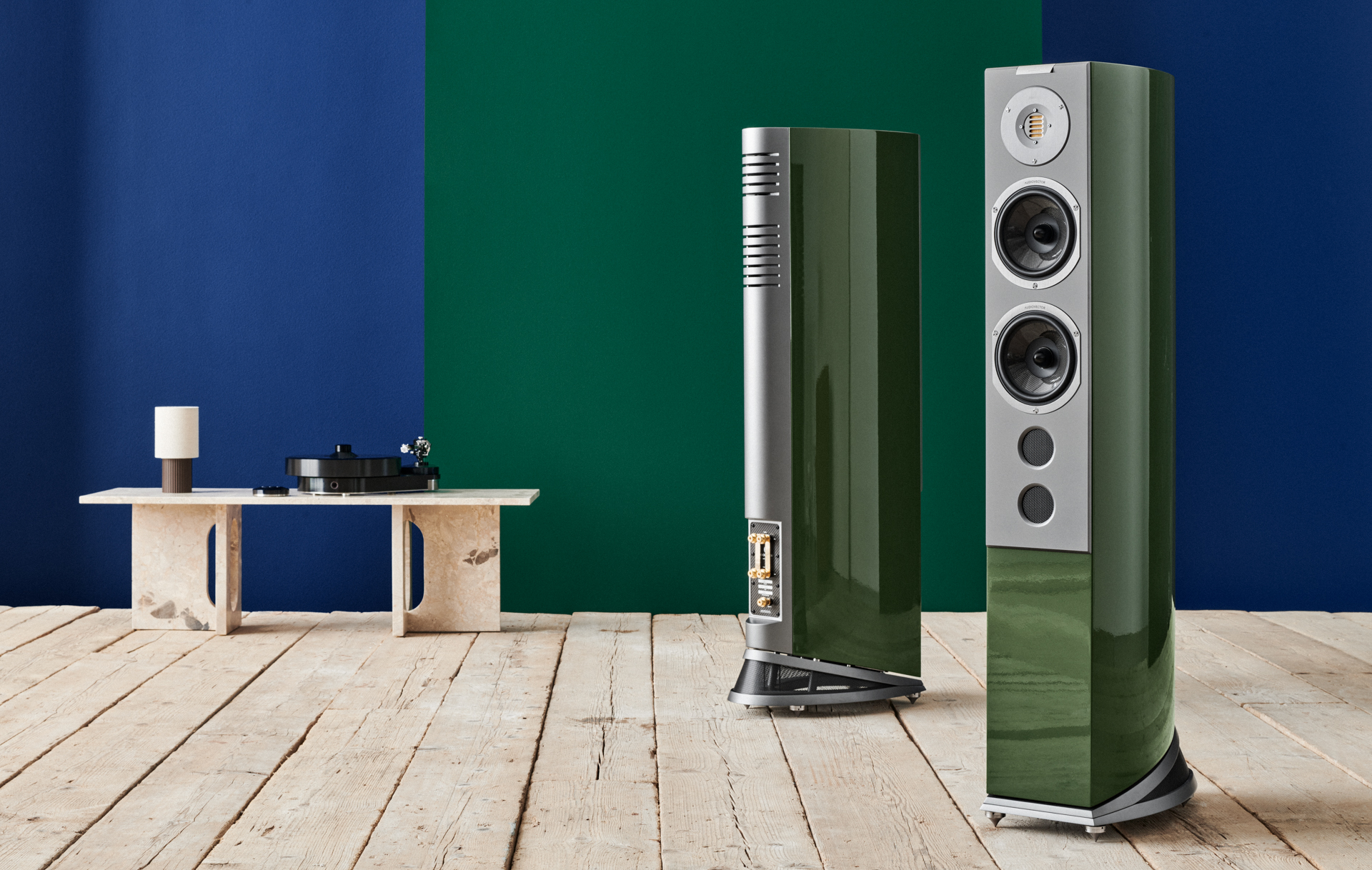

CUSTOM PIANO COLOURS ON REQUEST

r6-arrete-white-piano r6-arrete-italian-walnut r6-arrete-african-rosewood r6-arrete-black-piano

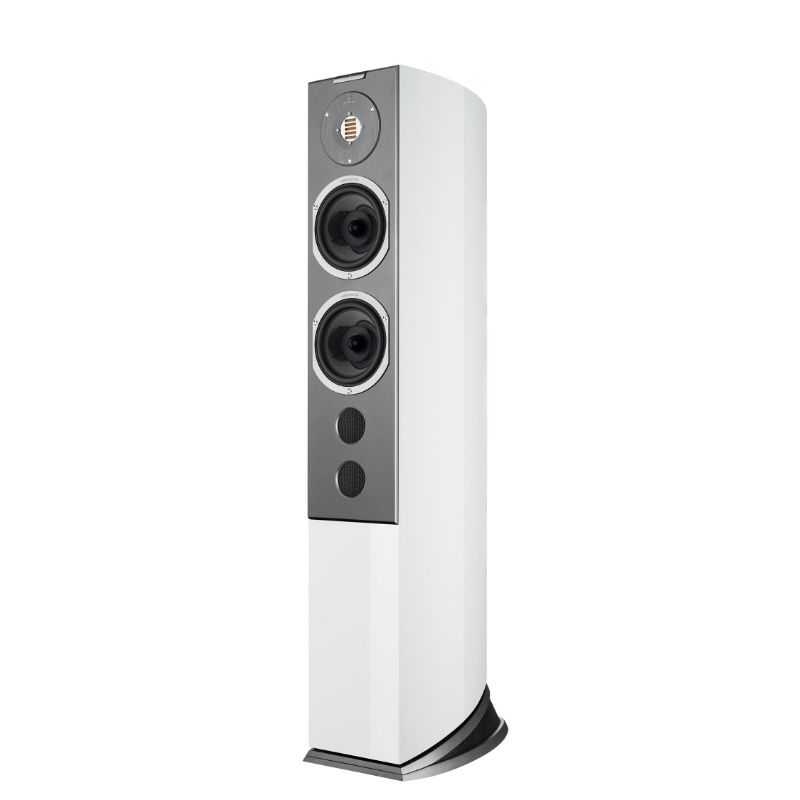

  • White Piano

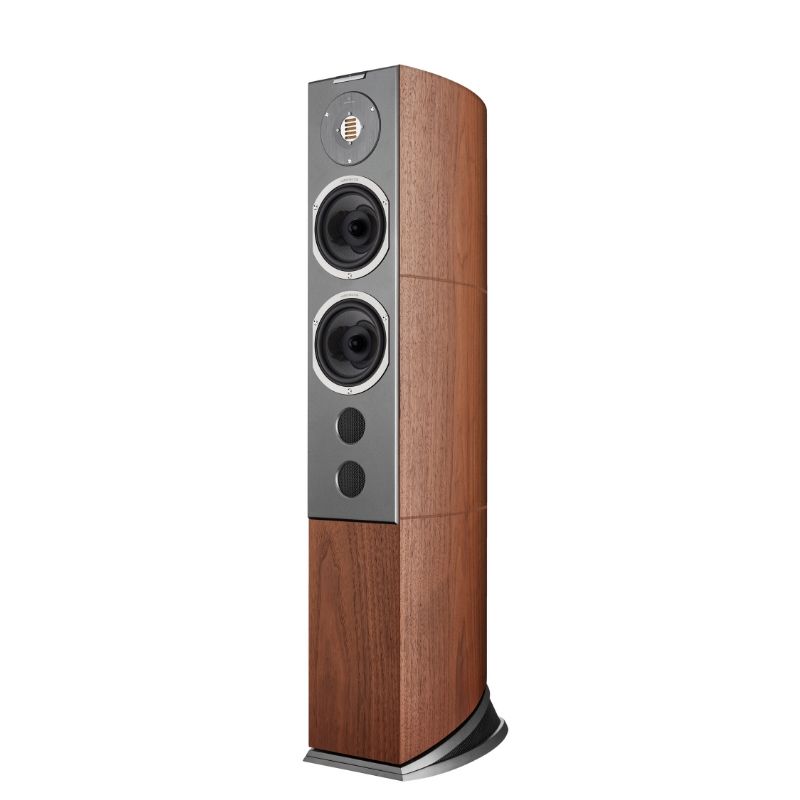

  • Italian Walnut

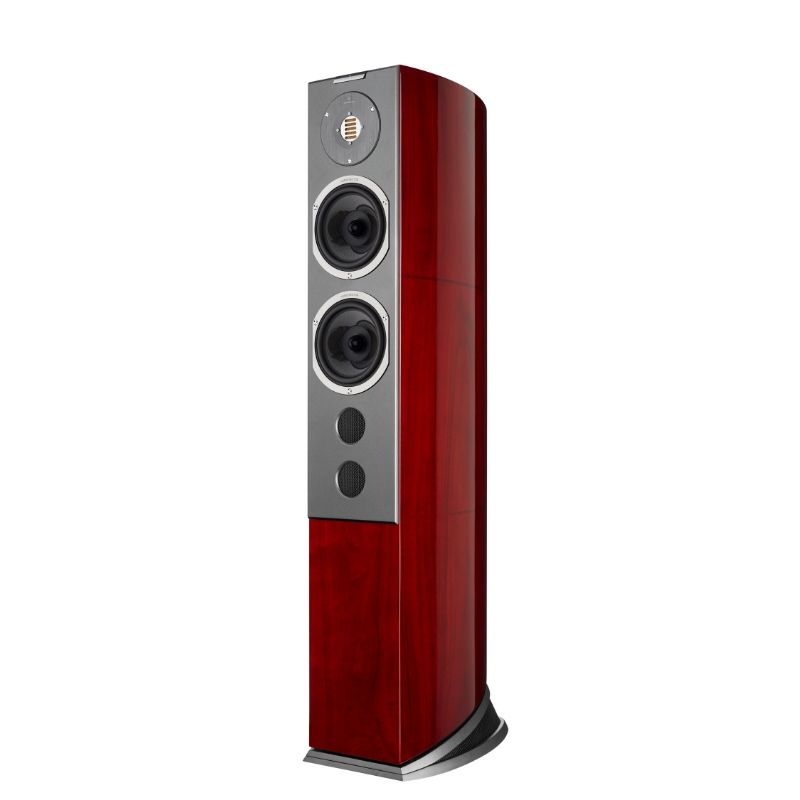

  • African Rosewood Piano

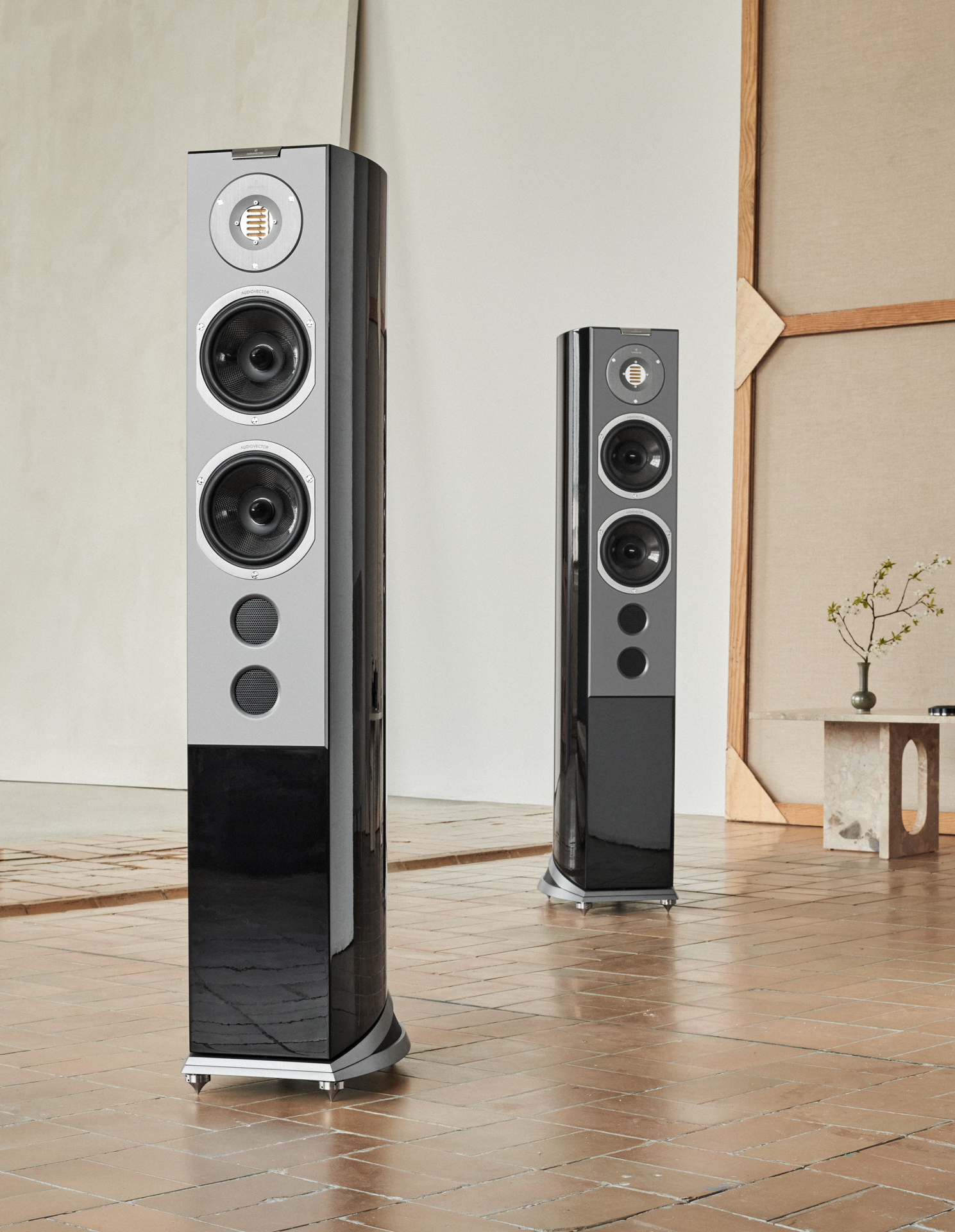

  • Black Piano

Handmade in Denmark since 1979

R 6 EXPLAINED

THE NEW AUDIOVECTOR HIGH FREQUENCY DRIVERS
The AMT drivers feature ultra-strong Neodymium magnets, lightweight precision coated mylar membranes and are mounted and decoupled from the cabinet in three points, a proprietary Audiovector concept called No Energy Storage (NES). The tweeters are open to the front and to the rear, and are able to move freely due to the Soundstage Enhancement Concept (SEC). All drivers are handmade in Denmark.

3” REAR FIRING MIDRANGE DRIVER
To further improve realism and increase the depth of field, the new R 6 Arreté now uses a rear firing 3” midrange driver with a dedicated crossover. The technology using a rear firing driver is inspired by the R 8 Arreté. The construction adds a perfectly dosed level of midrange.

NEW COMPOUND BASS SYSTEM

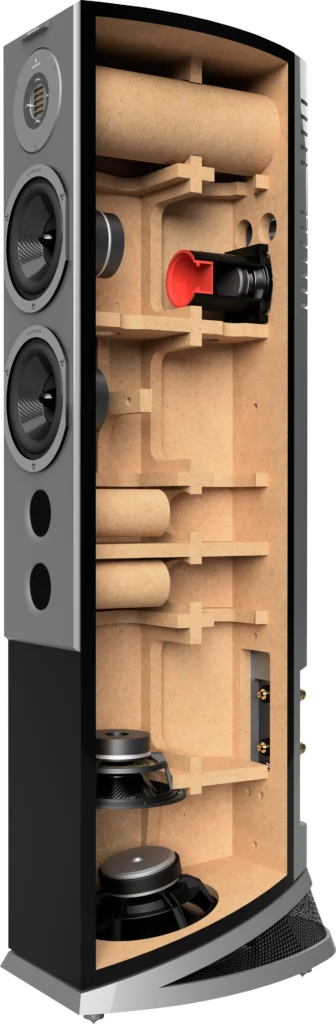

The R 6 have been generously upgraded with a new internal bass system. The Audiovector Isobaric Compound Bass system (ICB) consists of 2 hand-built bass drivers, a 6.5” internal woofer and 8” external down firing woofer. The masses of the two bass drivers involved are coupled together by the trapped air in their common internal enclosure. The system ´breathes´ through a perfectly tuned bass reflex port on the front of the loudspeaker. This construction allows for deep bass, precise playback and increased dynamics in its response.

THE NEW AUDIOVECTOR CARBON DRIVE UNITS, PRECISION AND HIGH DEFINITION
The combination of Titanium Coil Technology, large powerful ceramic ferrite magnets and rigid turbulence suppressing magnesium alloy, 3-point suspended baskets and membranes made from cross woven Aramid Composite Fibres, allows us to achieve a rich, clear and vibrant sound. All drive units are handmade in Denmark.

OUR concepts

Low Compression Concept
Soundstage Enhancement Concept
No Energy Storage
NCS Molecular realignment
Freedom grounding concept

R 6 Specifications

Arreté

Arreté

LCC​ LOW COMPRESSION

LCC LOW COMPRESSION

SEC​ SOUNDSTAGE ENHANCEMENT

SEC SOUNDSTAGE ENHANCEMENT

NES​ No Energy Storage

NES​ No Energy Storage

NCS Natural Crystal Structure

NCS Natural Crystal Structure

FGC FREEDOM GROUNDING® CONCEPT

FREEDOM GROUNDING® CONCEPT​

R AMT ARRETÈ

R AMT ARRETÈ

AUDIOVECTOR CARBON DRIVERS

Audiovector carbon drivers

REAR FIRING MIDRANGE 3"

REAR FIRING MIDRANGE 3"

ISOBARIC BASS REFLEX

ISOBARIC BASS REFLEX

TITANIUM TECHNOLOGY COILS

TITANIUM TECHNOLOGY COILS​

DFF CROSS-OVER TECHNOLOGY

DFF CROSS-OVER TECHNOLOGY

LAMINATED BAFFLES

LAMINATED BAFFLES​

NON PARALLEL SURFACES

NON PARALLEL SURFACES​

NANOPORE DAMPING MATERIAL

NANOPORE DAMPING MATERIAL​

Internal Shock Absorbers

Internal shock absorbers

M8 Premium Spikes

M8 Premium spikes

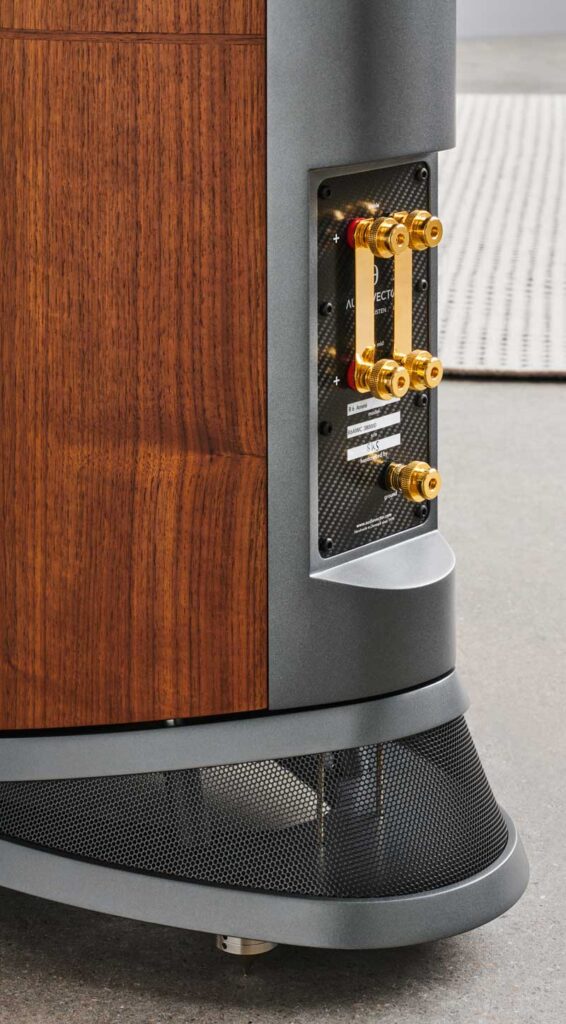

Carbon Terminal Plate

Carbon Terminal Plate

Frequency response​​

23 Hz – 52 kHz

Frequency response​​​

23 Hz – 52 kHz

Sensitivity

91,5 dB/W/m

Sensitivity​

91,5 dB/W/m

Impedance

8 Ohms

Impedance​

8 Ohms

Power handling

450 W

Power handling​

450 W

X-over frequencies

100/350/3000 Hz

X-over frequencies​

100/350/3000 Hz

Principle

4.5-way

Principle

4.5-way

Bass system

8+6,5” Isobaric Bass Reflex

Bass system

8+6,5” Isobaric Bass Reflex

Bass/mid drivers

6.5“ Carbon

Bass/mid drivers​

6.5 “ Carbon

Rear Firing midrange driver

3” Paper

Rear Firing midrange driver​

3” Paper

Treble driver

R AMT Arreté

Treble driver​

R AMT Arreté

Dimensions cm (footprint) Height/Width/Depth

123,4 x 27,8 x 43,1

Dimensions cm (footprint) Height/Width/Depth​

123,4 x 27,8 x 43,1

We reserve the right to change specifications without prior notice

Download brochure
Low compression concept A technology which allows the membranes of the drivers to move freely under all kinds of demanding conditions. This means that your Audiovector speakers will stay faith-ful to whatever signal they are fed – no matter how loud and complicated the material.
Soundstage enhancement concept This concept allows you to choose where you want to be positioned when you listen. This technology means the soundstage stays intact, wherever you are positioned. The sound fills a room in an incredible manner, giving the listener a realistic “live sound” experience.
No energy Drive units sound best if they do not have to ‘carry’ the weight of the speaker cabinet to which they are fixed. This is a question of transient response. Inspired by the solutions from the Audiovector R 11 Arreté, we have managed to use the NES concept to achieve an even higher level of realism and open soundstage from our speakers.
NCS molecular realigment Natural Crystal Structure is one of the many invisible technological improvementss of our Arreté models. By freezing components down to -238° C, the copper molecules realign themselves to their natural positions and will therefore reduce resistance. The result is a clear and more detailed sound quality.
Freedom of grounding Audiovector Freedom is a revolutionary grounding technology, which addresses the movement induced distortion of and between the drive units in a loudspeaker. The currencies running between the chassis are being processed and dealt with through a new separate crossover, which routes the signal to the ground terminal of your wall socket or your grounded mains distributor. These currencies cause coloration and distortion between the drive units. By balancing and filtering these through a dedicated separate filter and by offering the possibility of connecting them to earth/ground, we achieve a clean, very accurate, much more realistic sound with low noise floor.
